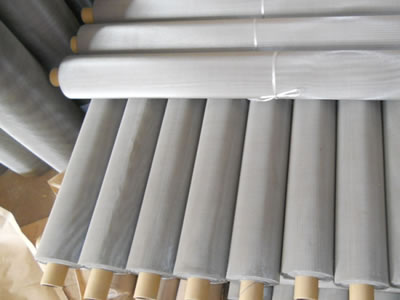

Square Mesh

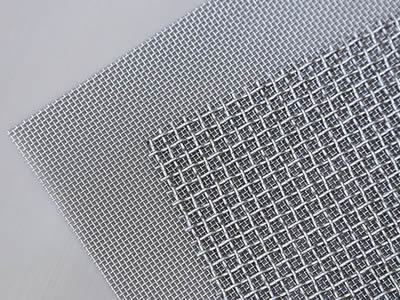

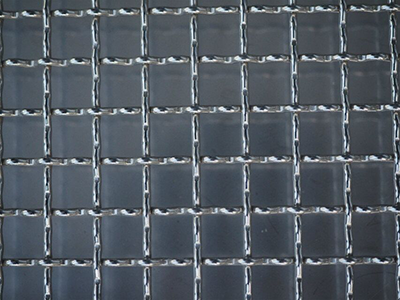

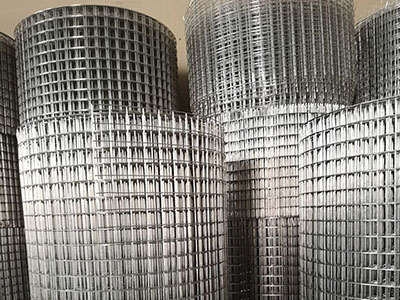

Square Mesh mainly includes regular Plain /Twill Weave Mesh;ranged from 1mesh to 635mesh ; “Tensile Bolt”Bolting Cloth ;Crimped Mesh and Welded Mesh ;

Regular Plain /Twill Weave Mesh and”Tensile Bolt “ Bolting Cloth are normally for industrial applications.

All the Square mesh quality control based on ASTM E 2016-15 Standard and raw material based on ASTM A580-14 standard.

Raw material Grade: 304, 304L, 316, 316L, 430, etc.

General uses in different applications:

  • Sizing
  • Particle separation and filtering
  • Particulate sifting
  • Safety and equipment protection.

Detailed Specifications:

Plain /Twill Square Mesh

Mesh count Wire Dia Width of Opening Open area
Inches mm Inches mm %
1X1 0.157 4 0.84 21.4 71
4X4 0.063 1.6 0.187 4.75 56
8X8 0.043 1.1 0.08 2.08 42
10X10 0.039 1 0.06 1.54 36
12X12 0.023 0.584 0.06 1.52 51.8
14X14 0.023 0.584 0.048 1.22 45.2
16X16 0.018 0.457 0.0445 1.13 50.7
18X18 0.017 0.432 0.0386 0.98 48.3
20X20 0.016 0.406 0.034 0.86 46.2
24X24 0.014 0.356 0.0277 0.7 44.2
30X30 0.012 0.305 0.0213 0.54 40.8
35X35 0.011 0.279 0.0176 0.45 37.9
40X40 0.01 0.254 0.015 0.38 36
50X50 0.008 0.203 0.012 0.31 36

Mesh count

Wire Dia Width of Opening Open area
Inches mm Inches mm %
60X60 0.0075 0.191 0.0092 0.23 30.5
70X70 0.0065 0.165 0.0078 0.2 29.8
80X80 0.0055 0.14 0.007 0.18 31.4
100X100 0.0045 0.114 0.0055 0.14 30.3
120X120 0.0037 0.094 0.0046 0.1168 30.7
150X150 0.026 0.066 0.0041 0.1041 37.4
180X180 0.023 0.0584 0.0033 0.0838 34.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6
250X250 0.0016 0.406 0.0024 0.061 36
300X300 0.0015 0.0381 0.0018 0.0457 29.7
325X325 0.0014 0.0356 0.0017 0.0432 30
400X400 0.001 0.0254 0.0015 0.037 36
500X500 0.001 0.0254 0.001 0.0254 25
635X635 0.0008 0.0203 0.0008 0.0203 25

"Tensil Bolt" Bolting Cloth

Mesh count
 Width of Opening Diameter of Wire Open area
Inches mm Inches mm %
30X30 0.0268 0.681 0.0065 0.165 64.8
36X36 0.0213 0.541 0.0065 0.165 58.7
40X40 0.0185 0.47 0.0065 0.165 54.8
50X50 0.0145 0.368 0.0055 0.127 52.6
60X60 0.0122 0.31 0.0045 0.114 53.3
70X70 0.0106 0.269 0.0037 0.094 54.9
80X80 0.0088 0.224 0.0037 0.094 49.6
105X105 0.0065 0.165 0.003 0.076 46.9
120X120 0.0058 0.147 0.0025 0.064 47.3
165X165 0.0042 0.107 0.0019 0.048 47.1
200X200 0.0034 0.0864 0.0016 0.0406 46.2
230X230 0.0029 0.0737 0.0014 0.0356 46
400X400 0.0016 0.0415 0.0009 0.022 35.1

Applications:

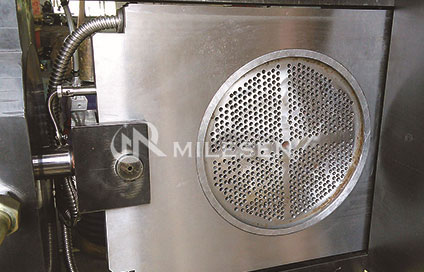

1. Plastic or Rubber Filtration

Single or multi Layer Plain Weave or Twill Weave Stainless Steel and Plain Steel wire mesh discs with Round ,Oval ,Rectangular ,Cones and other special shapes from mesh 20-mesh 500.

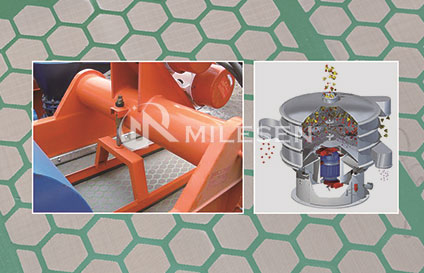

2. Screening and sieving for food industry,petrochemical and metal mineral industries
