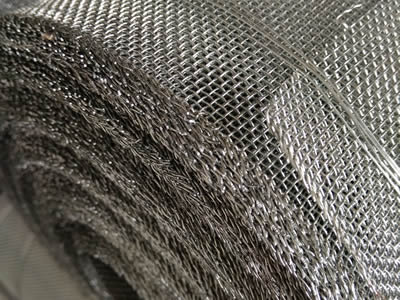

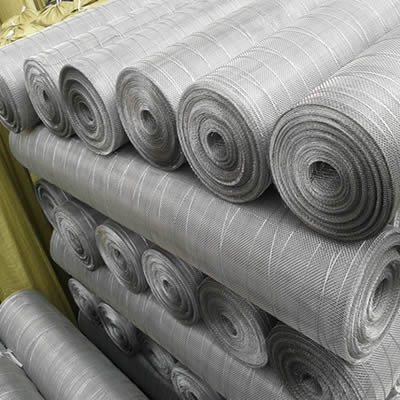

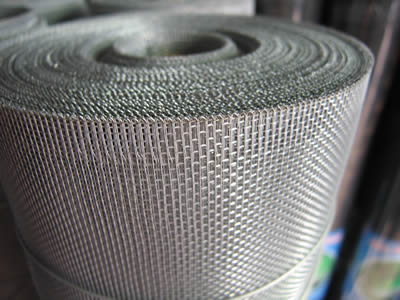

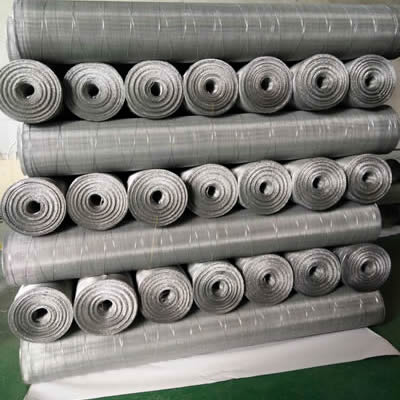

Iron & Galvanized Wire Mesh

Galvanized wire mesh is made of selected plain steel wire with precise construction, uniform opening, excellent corrosion and rust resistance.

Galvanized wire mesh it is mostly used as window screening, safety guards on machinery enclosures. It is also used in filtering liquid and gas, sieving grain.

It is divide into Electro Galvanized Square Wire Mesh and Hot-dipped Galvanized Square Wire Mesh. They can be processed by galvanized before weaving or galvanized after weaving.

Please check the Assortments Available as follows:

• Hot-Dipped Galvanized Before Weaving
• Hot-Dipped Galvanized After Weaving
• Electro Galvanized Before Weaving
• Electro Galvanized After Weaving

Common specification: from 2 mesh to 60 mesh.

The sizes can be produced as per customers requirement.

The following specifications of Galvanized Wire Mesh are listed for your reference:

Mesh	Wire Dia.(mm)	Opening (mm)
3	1.60	6.87
4	1.20	5.15
5	0.95	4.13
6	0.80	3.43
8	0.70	2.43
10	0.60	1.94
12	0.55	1.56
14	0.14	1.40
16	0.38	1.24
18	0.30	1.11
20	0.27	1.00
22	0.25	0.90
24	0.23	0.83
26	0.20	0.78
28	0.18	0.73
30	0.15	0.70
35	0.14	0.59
40	0.14	0.50
50	0.12	0.39
60	0.12	0.30
